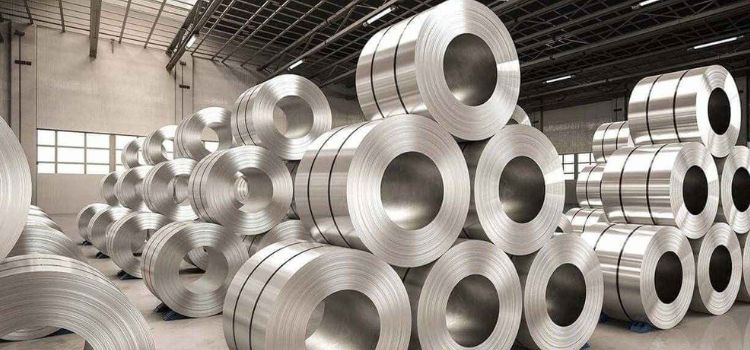

Aluminium Coil
Aluminium metal is widely used in thermal insulation cladding due to its natural corrosion resistance and lightweight strength. The protective oxide coating prevents rusting and long-term degradation, even in harsh industrial environments.
Aluminium is one of the easiest metals to bend and form, making it ideal for curved, complex, and custom architectural or industrial insulation applications.
Applications
- Hot & cold pipeline insulation jacketing
- Thermal insulation cladding for tanks & vessels
- Small & large industrial processing equipment
- Refineries, power plants & EPC projects
- Protective covering for exposed insulation
Key Advantages
- Natural corrosion & rust resistance
- Lightweight, flexible & easy to fabricate
- Excellent weather & moisture protection
- Long service life with minimal maintenance
- Clean and professional industrial finish
Available Product Range
- Aluminium Coils – 20, 22, 24 & 26 SWG
- Standard widths: 3 Ft / 4 Ft
- Aluminium Foils – 0.1 mm to 0.5 mm
- Forms: Coil / Sheet
- Mill finish & Stucco embossed
Product Technical Specifications
| Parameter | Range | Standard | Tolerance |
|---|---|---|---|
| Thickness (mm) | 0.16 – 4.00 | - |
0.16–0.29 ±0.01 0.30–0.71 ±0.05 0.72–1.40 ±0.08 1.41–2.00 ±0.11 2.01–4.00 ±0.12 |
| Width (mm) | 50 – 1620 | 914 / 1219 / 1525 | Slit Coil: +2 / -0 |
| Inner Diameter (mm) | 508 / 203 | - | - |
| Coil Density | 6 kg/mm (Max) | - | - |
Stucco embossed aluminium coils are available in thickness range of 0.30 – 2.00 mm.
Why Choose Cabsons Aluminium Coils?
Cabsons Insulation Pvt. Ltd. ensures consistent material quality, accurate sizing, and reliable supply for insulation contractors, EPC companies, and industrial clients across India.
