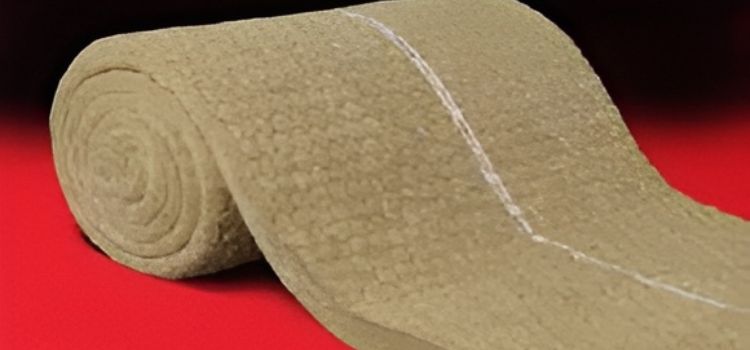

Rockwool Mattress (LRB Type)
Rockwool Mattresses, also known as Light Resin Bonded (LRB) mattresses, are flexible insulation products manufactured from stable rock fibers bonded with a minimal quantity of thermosetting resin and reinforced with metal wire mesh.
These mattresses are easy to handle, cut, resize, and shape, making them ideal for insulation of irregular surfaces, curved equipment, and high-temperature industrial installations.
Applications
- Steam piping insulation
- Boilers & hot water generators
- Hot storage tanks insulation
- Evaporators & dryers
- Reactors & high-temperature equipment
Key Advantages
- Withstands high service temperatures up to 750°C
- Flexible and easy to install on curved surfaces
- Excellent thermal & acoustic insulation
- Fire safe with low flame spread & smoke index
- Non-corrosive and asbestos-free
Available Thickness & Density
- Densities: 85 / 100 / 120 / 150 kg/m³
- Thickness: 25 mm to 100 mm
- Standard size: 1640 × 1220 mm
- Metal mesh stitched mattresses
- Custom specifications on request
Technical Specifications
| Material Composition | Mineral fiber blanket made from rock fibers processed from molten rock, bonded with organic resin and reinforced with hexagonal GI wire mesh. Free from asbestos. |
|---|---|
| Density Range | 70 – 160 kg/m³ |
| Facing | Hexagonal metal mesh with GI wire |
| Thermal Conductivity | 0.037 W/m·K at 50°C mean temperature (100 kg/m³ density) |
| Service Temperature | Up to 750°C |
| Linear Shrinkage | Less than 2% |
| Water Vapor Absorption | Less than 1% by volume |
| Fire Performance |
Flame Spread Index < 25 Smoke Developed Index < 50 |
| Corrosiveness to Steel | Non-corrosive |
| Odor Emission | No detectable objectionable odor |
Product Range – Rockwool Mattresses
| Material | Density Options | Thickness (mm) |
|---|---|---|
| LRB Rockwool Mattress (1640 × 1220 mm) | 85 / 100 / 120 / 150 kg/m³ | 25, 30, 40, 50, 60, 70, 75, 80, 100 |
Why Choose Cabsons Rockwool Mattresses?
Cabsons Insulation Pvt. Ltd. supplies high-quality LRB Rockwool mattresses with consistent density, reliable thermal performance, and robust wire mesh reinforcement for boilers, steam lines, reactors, and high-temperature industrial insulation projects across India.
